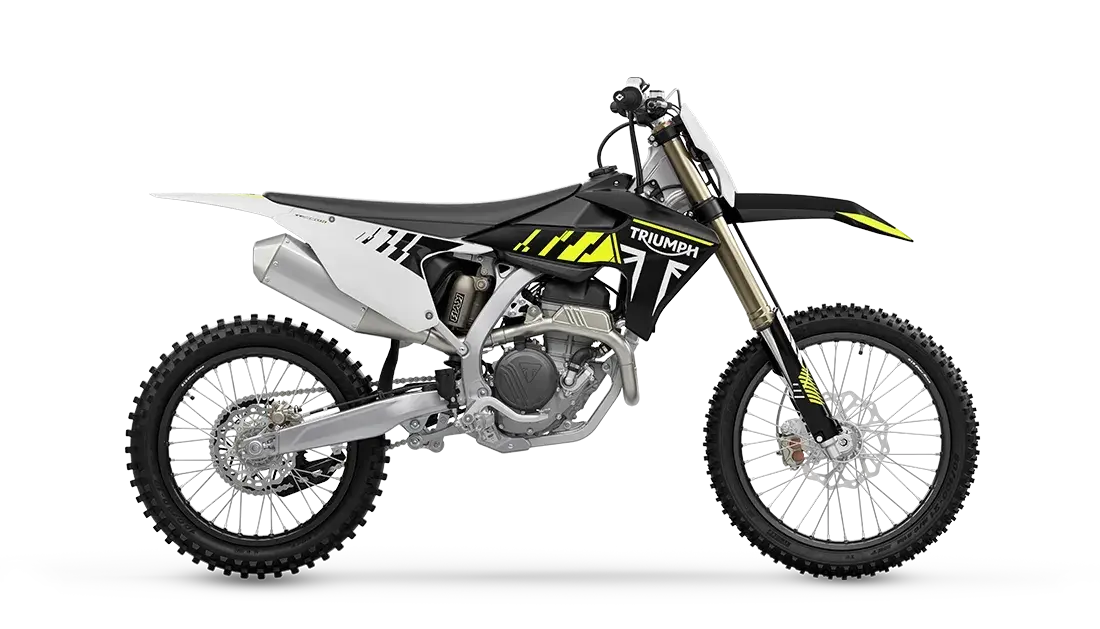

‹ Home › Inventory › TF250X 2025 TF 250-X

New 2025 TRIUMP TF 250-X FOR SALE NEAR Woodstock, IL

This New Triumph Racing Yellow / Black / White 2025 TRIUMP TF 250-X is for sale at Woodstock KTM Triumph located in Woodstock, IL. Contact Woodstock KTM Triumph of Woodstock, IL today to schedule a test-ride. If this isn't the exact TRIUMP you're looking for don't hesitate to go back and revise your search. We're sure to have the perfect new motorcycle for you on our showroom in Woodstock where we host one of the largest selections of new and used motorcycles. Visit Woodstock KTM Triumph of Woodstock, your IL TRIUMP dealership. IL’s premier new & used motorcycle dealer, we'll help you ride home on a new TRIUMP today!

Woodstock KTM Triumph

Easy Financing. Call Today!

Map Directions: 2235 S. Eastwood Dr.

Click To Call: 815-337-3511

With an all new and all-Triumph design, a class-leading power-to-weight ratio, and all the spec you need to win, the TF 250-X is the most complete package ever to launch into the ultra-competitive 250 segment.

It’s been designed and developed by Triumph in close collaboration with the best in the business, including the GOAT himself.

All-New, All-Triumph Competition Single. Lightweight, powerful with an ultra-compact mass-optimised design and 5-speed gearbox.

Specifications

Engine & Transmission

add remove
- Engine Type:

  Single Cylinder 4-Stroke DOHC
- Capacity:

  249.95 cc
- Bore:

  3.1 in
- Stroke:

  2.1 in
- Compression:

  14.4
- System:

  Dellorto Throttle Body, Athena EMS
- Exhaust:

  Single Silencer
- Final Drive:

  13/48
- Clutch:

  Wet Multi-Plate Belleville Spring
- Gearbox:

  5 Speed
Chassis

add remove
- Frame:

  Aluminium, Spine
- Swingarm:

  Aluminium Fabrication
- Front Wheel:

  21" x 1.6"
- Rear Wheel:

  19" x 1.85"
- Front Tyre:

  80/100 - 21
- Rear Tyre:

  100/90 - 19
- Front Suspension:

  KYB 48mm Coil Spring Fork, Compression/Rebound Adjustment, 310mm Travel
- Rear Suspension:

  KYB Coil, Compression Adjustment (H and L Speed), Rebound Adjustment, 305mm Travel
- Front Brake:

  Brembo Twin 24mm Piston, 260mm Disc
- Rear Brake:

  Brembo Single 26mm Piston, 220mm Disc
- Instrument Display and Functions:

  Hour Meter, Multifunction Switch Cubes
Dimensions & Weights

add remove
- Width Handlebars:

  32.9 in
- Height Without Mirror:

  50.0 in
- Seat Height:

  37.8 in
- Wheelbase:

  58.7 in
- Rake:

  27.4 º
- Trail:

  4.6 in
- Tank Capacity:

  1.8 gal
- Wet Weight:

  104 kg
