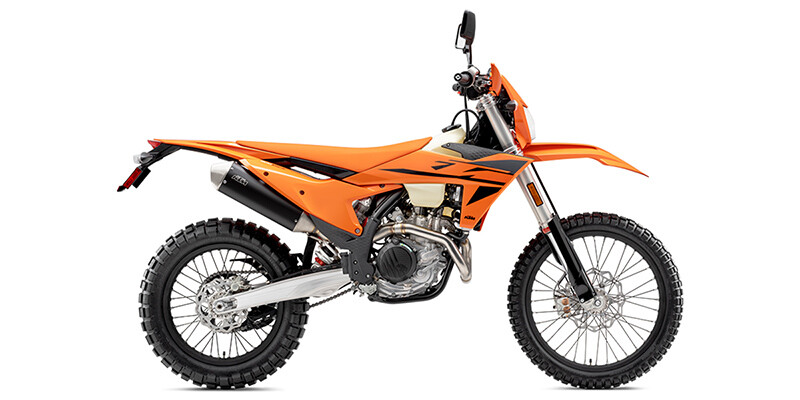

2025 500 EXC-F

2025 500 EXC-F

Description

Heading off to explore an abandoned town? Done. Churning dirt in a forest? Easy. Charging through the deep sandy deserts? Let's go! The 2025 KTM 500 EXC-F doesn't shy away from anything. Churning out serious power, and built around a lightweight frame with best-in-class suspension, this large-displacement powerhouse is surprisingly usable, making the KTM 500 EXC-F the ultimate half-liter weapon in anyone's dual-sport arsenal.

Specifications

  • ENGINE
    add remove
    • Engine Type
      Single-Cylinder
    • Engine Stroke
      4-Stroke
    • Bore (in)
      3.74
    • Stroke (in)
      2.83
    • Displacement (cc)
      510.9
    • Compression Ratio
      12.8:1
  • TRANSMISSION
    add remove
    • Transmission
      Standard
    • Transmission Type
      Manual
    • Primary Drive (Rear Wheel)
      Chain
    • Number Of Speeds
      6
    • Overdrive
      Yes
    • Transmission Brand
      Pankl
  • TECHNICAL SPECIFICATIONS
    add remove
    • Wheelbase (in)
      58.6
    • Ground Clearance (in)
      14
    • Ground Clearance (mm)
      355
    • Dry Weight (lbs)
      253.5
    • Fuel Capacity (gal)
      2.3
    • Fuel Capacity (l)
      8.5
    • Engine Displacement to Weight (cc)
      2.01
  • SUSPENSION
    add remove
    • Front Suspension Type
      Inverted Fork
    • Front Suspension Size (in)
      1.9
    • Rear Suspension Type
      Twin Sided Swing Arm
    • Number Rear Shock Absorbers
      1
    • Front Suspension Brand Name
      WP XACT
    • Rear Suspension Brand Name
      WP XPLOR
  • WHEELS & TIRES
    add remove
    • Front Wheel Width (in)
      1.6
    • Rear Wheel Width (in)
      2.15
    • Front Tire Width
      90
    • Front Wheel Diameter
      21
    • Rear Wheel Diameter
      18
    • Front Tire (Full Spec)
      Continental TKC 80 90/90 R21
    • Rear Tire (Full Spec)
      Continental TKC 80 140/80 R18
    • Rear Tire Width
      140
    • Front Tire Aspect Ratio
      90
    • Rear Tire Aspect Ratio
      80
  • BRAKES
    add remove
    • Front Brake Type
      Hydraulic Disc
    • Front Brake Diameter (in)
      10.2
    • Rear Brake Type
      Hydraulic Disc
    • Rear Brake Diameter (in)
      8.7
  • Color options
    add remove
    • Orange / Black
