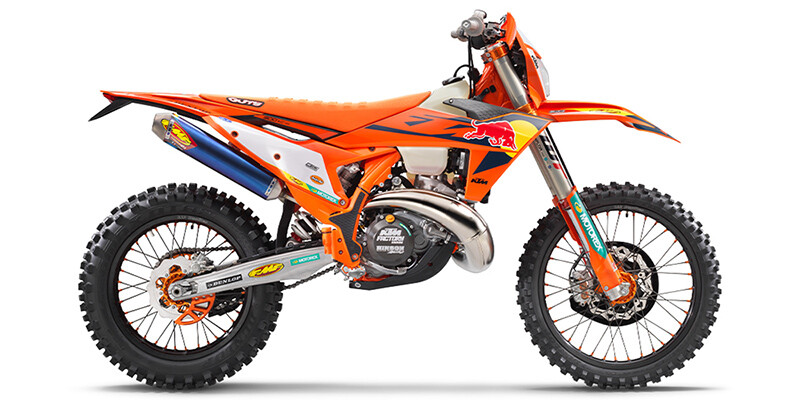

2025 300 XC-W Factory Edition

Request details Take a test ride

Description

The Crème de la crème of enduro mastery, the 2025 KTM 300 XC-W FACTORY EDITION moves the enduro goalposts to an entirely new stratosphere. Instantly recognizable with full Red Bull KTM Factory Racing livery, an insane mix of CNC and anodized hardware - as well as the top suspension in the business - the KTM 300 XC-W FACTORY EDITION is ready to crown its next champion. 2025 KTM 300 XC-W FACTORY EDITION highlights are:

ORANGE GLOSSY FRAME
FACTORY RACING FRAME PROTECTION SET
FACTORY RACING SEAT
MAP-SELECT SWITCH
FACTORY RACING TRIPLE CLAMP
FACTORY WHEEL SET
RADIATOR FAN -SKID PLATE
SEMI-FLOATING FRONT BRAKE DISC
FRONT BRAKE DISC GUARD
SOLID REAR BRAKE DISC
WP XPLOR PRO COMPONENTS FRONT FORK
REAR BRAKE SAFETY WIRE
ORANGE REAR BRAKE DISC GUARD
ORANGE SUPERSPROX STEALTH REAR SPROCKET
ORANGE OIL FILLER PLUG
HINSON OUTER CLUTCH COVER
CLUTCH SLAVE CYLINDER PROTECTION
FMF TITANIUM POWERCORE 2.1 SILENCER
DUNLOP AT82 ENDURO TIRES

Specifications

ENGINE

add remove
- Engine Type

  Single-Cylinder
- Engine Stroke

  2-Stroke
- Bore (in)

  2.83
- Stroke (in)

  2.83
- Displacement (cc)

  293.2
- Horsepower (bhp)

  49
- Compression Ratio

  13.2:1
- Torque (Ft Lbs)

  32.3
- Torque (Nm)

  43.8
TRANSMISSION

add remove
- Transmission

  Standard
- Transmission Type

  Manual
- Primary Drive (Rear Wheel)

  Chain
- Number Of Speeds

  6
- Overdrive

  Yes
- Gear Ratio (1)

  2.29
- Gear Ratio (2)

  1.63
- Gear Ratio (3)

  1.25
- Gear Ratio (4)

  1.05
- Gear Ratio (5)

  0.88
- Gear Ratio (6)

  0.77
- Transmission Brand

  Pankl
TECHNICAL SPECIFICATIONS

add remove
- Wheelbase (in)

  58.6
- Fuel Capacity (gal)

  2.4
- Fuel Capacity (l)

  9
- Engine Displacement to Weight (cc)

  1.27
- Fuel Capacity Reserve (gal)

  0.4
SUSPENSION

add remove
- Front Suspension Type

  Inverted Fork
- Front Suspension Size (in)

  1.9
- Front Travel (in)

  11.8
- Rear Suspension Type

  Twin Sided Swing Arm
- Rear Travel (in)

  12.2
- Number Rear Shock Absorbers

  1
- Front Suspension Brand Name

  WP XPLOR
- Rear Suspension Brand Name

  WP XPLOR
WHEELS & TIRES

add remove
- Front Wheel Width (in)

  1.6
- Rear Wheel Width (in)

  2.15
- Front Tire Width

  80
- Front Wheel Diameter

  21
- Rear Wheel Diameter

  18
- Front Tire (Full Spec)

  Dunlop® AT82 80/1000 R21
- Rear Tire (Full Spec)

  Dunlop® AT82 110/100 R18
- Rear Tire Width

  110
- Front Tire Aspect Ratio

  100
- Rear Tire Aspect Ratio

  100
BRAKES

add remove
- Front Brake Type

  Hydraulic Disc
- Front Brake Diameter (in)

  10.2
- Rear Brake Type

  Hydraulic Disc
- Rear Brake Diameter (in)

  8.7
Color options

add remove
- Orange / Red / Blue
