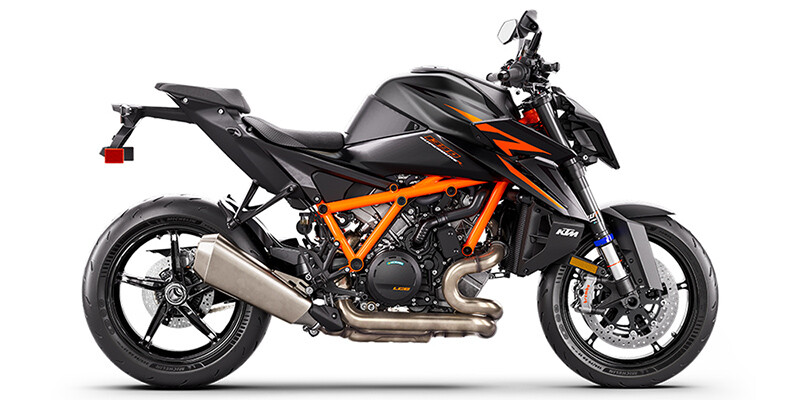

2026 1390 Super Duke R EVO

Specifications

• ENGINE

  add remove
  • Engine Type
    V Twin
  • Engine Stroke
    4-Stroke
  • Bore (in)
    4.33
  • Stroke (in)
    2.8
  • Displacement (cc)
    1350
  • Horsepower (bhp)
    190
  • Compression Ratio
    13.2:1
  • Torque (Ft Lbs)
    107
  • Torque (Nm)
    145
  • Torque RPM
    7000
• TRANSMISSION

  add remove
  • Transmission
    Standard
  • Transmission Type
    Manual
  • Primary Drive (Rear Wheel)
    Chain
  • Number Of Speeds
    6
  • Overdrive
    Yes
  • Primary Drive (Engine / Transmission)
    Gear
• TECHNICAL SPECIFICATIONS

  add remove
  • Wheelbase (in)
    58.7
  • Ground Clearance (in)
    5.9
  • Ground Clearance (mm)
    149
  • Dry Weight (lbs)
    440.9
  • Fuel Capacity (gal)
    4.6
  • Fuel Capacity (l)
    17.5
  • Engine Displacement to Weight (cc)
    3.1
  • Wet Weight (lbs)
    467.4
  • Wet Weight (kg)
    212
• SUSPENSION

  add remove
  • Front Suspension Type
    Inverted Fork
  • Front Suspension Size (in)
    1.9
  • Front Travel (in)
    4.9
  • Rear Suspension Type
    Single Sided Swing Arm
  • Rear Travel (in)
    5.5
  • Number Rear Shock Absorbers
    1
  • Front Suspension Brand Name
    WP
  • Rear Suspension Brand Name
    WP APEX
• WHEELS & TIRES

  add remove
  • Front Wheel Width (in)
    3.5
  • Rear Wheel Width (in)
    6
  • Front Tire Width
    120
  • Front Wheel Diameter
    17
  • Rear Wheel Diameter
    17
  • Front Tire (Full Spec)
    Michelin® Power GP 120/70 ZR17
  • Rear Tire (Full Spec)
    Michelin® Power GP 200/55 ZR17
  • Rear Tire Width
    200
  • Front Tire Aspect Ratio
    70
  • Rear Tire Aspect Ratio
    55
• BRAKES

  add remove
  • Front Brake Type
    Dual Hydraulic Disc
  • Front Brake Diameter (in)
    12.6
  • Rear Brake Type
    Hydraulic Disc
  • Rear Brake Diameter (in)
    9.5
• Color options

  add remove
  • Black
  • Orange
