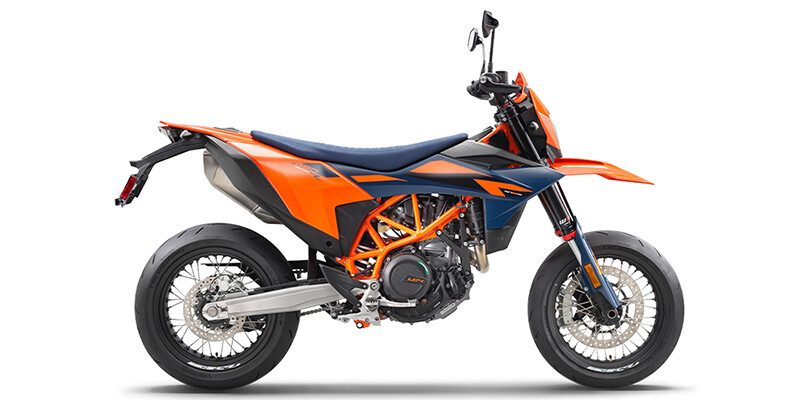

2026 690 SMC R

2026 690 SMC R

Description

The KTM 690 SMC R obliterates the competition, proving itself as the undisputed king of its class. Providing the rider with agile handling, best-in-class power, and rider focused ergonomics, the KTM 690 SMC R embodies the notion of READY TO RACE with 110% dedication to its craft. From sliding into corners, power-wheelies over crests, and hard blasts through tight mountain passes, the King of supermoto for the street is on the attack.

Specifications

  • ENGINE
    add remove
    • Engine Type
      Single-Cylinder
    • Engine Stroke
      4-Stroke
    • Bore (in)
      4.13
    • Stroke (in)
      3.15
    • Displacement (cc)
      692.7
    • Torque (Ft Lbs)
      53.8
    • Torque (Nm)
      73
  • TRANSMISSION
    add remove
    • Transmission
      Standard
    • Transmission Type
      Manual
    • Primary Drive (Rear Wheel)
      Chain
    • Number Of Speeds
      6
  • TECHNICAL SPECIFICATIONS
    add remove
    • Wheelbase (in)
      58.1
    • Ground Clearance (in)
      9.3
    • Ground Clearance (mm)
      237
    • Dry Weight (lbs)
      338.4
    • Fuel Capacity (gal)
      3.5
    • Fuel Capacity (l)
      13.3
    • Engine Displacement to Weight (cc)
      2.05
    • Wet Weight (lbs)
      357.1
    • Wet Weight (kg)
      162
  • SUSPENSION
    add remove
    • Front Suspension Type
      Inverted Fork
    • Front Suspension Size (in)
      1.9
    • Front Travel (in)
      8.8
    • Rear Suspension Type
      Twin Sided Swing Arm
    • Rear Travel (in)
      9.4
    • Number Rear Shock Absorbers
      1
    • Front Suspension Brand Name
      WP APEX
    • Rear Suspension Brand Name
      WP APEX
  • WHEELS & TIRES
    add remove
    • Front Wheel Width (in)
      3.5
    • Rear Wheel Width (in)
      5
    • Front Tire Width
      120
    • Front Wheel Diameter
      17
    • Rear Wheel Diameter
      17
    • Front Tire (Full Spec)
      Bridgestone S21 120/70 R17 58W
    • Rear Tire (Full Spec)
      Bridgestone S21 160/60 R17 69W
    • Rear Tire Width
      160
    • Front Tire Aspect Ratio
      70
    • Rear Tire Aspect Ratio
      60
    • Front Tire Speed Rating
      W
    • Rear Tire Speed Rating
      W
  • BRAKES
    add remove
    • Front Brake Type
      Disc
    • Front Brake Diameter (in)
      11.8
    • Rear Brake Type
      Disc
    • Rear Brake Diameter (in)
      9.5
  • Color options
    add remove
    • Black / Blue
