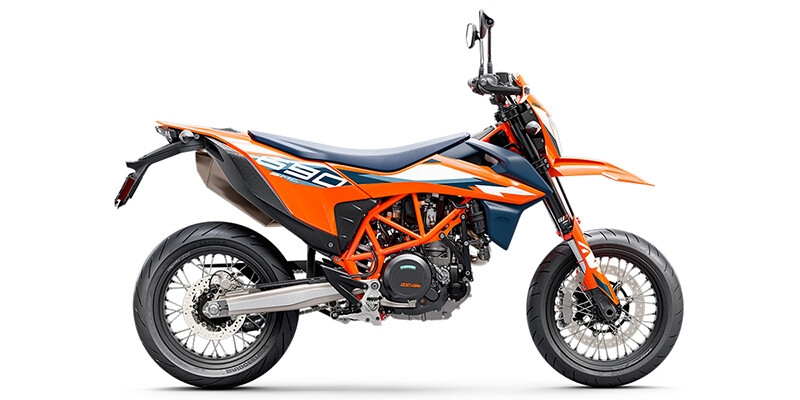

2024 690 SMC R

2024 690 SMC R

Description

The KTM 690 SMC R raises the bar in the supermotos stakes, thanks in part to a lightweight chassis, a legendary 690 LC4 motor and a sophisticated electronics package. Whether you express your tarmac-sliding talent on mountain roads or on the apexes of your favourite track, you'll be drifting into the future with a maxed-out grin and your veins coursing with adrenaline. Handling is enhanced by the latest fully-adjustable WP APEX suspension, so all you have to worry about is focusing on the road ahead and twisting the throttle to the stoppers.

Specifications

  • ENGINE
    add remove
    • Engine Type
      Single-Cylinder
    • Engine Stroke
      4-Stroke
    • Bore (in)
      4.13
    • Stroke (in)
      3.15
    • Displacement (cc)
      692.7
    • Horsepower (bhp)
      74
  • TRANSMISSION
    add remove
    • Transmission
      Standard
    • Transmission Type
      Manual
    • Primary Drive (Rear Wheel)
      Chain
    • Number Of Speeds
      6
  • TECHNICAL SPECIFICATIONS
    add remove
    • Fuel Capacity (gal)
      3.6
    • Fuel Capacity (l)
      13.5
  • SUSPENSION
    add remove
    • Front Suspension Type
      Inverted Fork
    • Front Suspension Size (in)
      1.9
    • Front Travel (in)
      10.8
    • Rear Suspension Type
      Twin Sided Swing Arm
    • Number Rear Shock Absorbers
      1
    • Front Suspension Brand Name
      WP APEX
    • Rear Suspension Brand Name
      WP APEX
  • WHEELS & TIRES
    add remove
    • Front Wheel Width (in)
      3.5
    • Rear Wheel Width (in)
      5
    • Front Tire Width
      120
    • Front Wheel Diameter
      17
    • Rear Wheel Diameter
      17
    • Front Tire (Full Spec)
      Bridgestone S21 120/70 R17 58W
    • Rear Tire (Full Spec)
      Bridgestone S21 160/60 R17 69W
    • Rear Tire Width
      160
    • Front Tire Aspect Ratio
      70
    • Rear Tire Aspect Ratio
      60
    • Front Tire Speed Rating
      W
    • Rear Tire Speed Rating
      W
  • BRAKES
    add remove
    • Front Brake Type
      Disc
    • Front Brake Diameter (in)
      12.6
    • Rear Brake Type
      Disc
    • Rear Brake Diameter (in)
      9.5
  • Color options
    add remove
    • Black / Orange
