2024 RC 390

2024 RC 390

Request details Take a test ride

Description

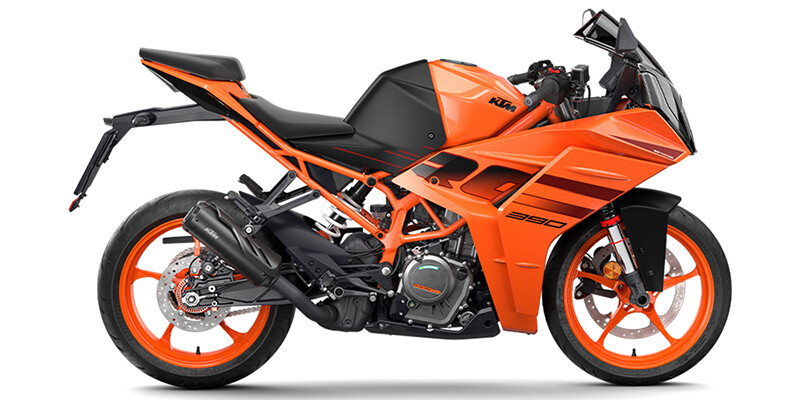

The 2024 KTM RC 390 is a high-performance Supersports machine with its roots firmly planted on the race track. Featuring an impressive technology package, as well as race-derived styling, handling characteristics, and addictive power delivery, the KTM RC 390 is a real-world racer with undoubted pedigree.

Specifications

  • ENGINE
    add remove
    • Engine Type
      Single-Cylinder
    • Engine Stroke
      4-Stroke
    • Bore (in)
      3.5
    • Stroke (in)
      2.36
    • Displacement (cc)
      373
    • Horsepower (bhp)
      44
    • Compression Ratio
      12.6:1
    • Torque (Ft Lbs)
      27.3
    • Torque (Nm)
      37
  • TRANSMISSION
    add remove
    • Transmission
      Standard
    • Transmission Type
      Manual
    • Primary Drive (Rear Wheel)
      Chain
    • Number Of Speeds
      6
    • Final Drive Ratio
      2.67
    • Overdrive
      Yes
    • Gear Ratio (1)
      2.67
    • Gear Ratio (2)
      1.86
    • Gear Ratio (3)
      1.42
    • Gear Ratio (4)
      1.14
    • Gear Ratio (5)
      0.96
    • Gear Ratio (6)
      0.84
  • TECHNICAL SPECIFICATIONS
    add remove
    • Wheelbase (in)
      52.8
    • Ground Clearance (in)
      6.2
    • Ground Clearance (mm)
      158
    • Dry Weight (lbs)
      341.7
    • Fuel Capacity (gal)
      3.6
    • Fuel Capacity (l)
      13.7
    • Engine Displacement to Weight (cc)
      1.09
  • SUSPENSION
    add remove
    • Front Suspension Type
      Inverted Fork
    • Front Suspension Size (in)
      1.7
    • Front Travel (in)
      4.7
    • Rear Suspension Type
      Twin Sided Swing Arm
    • Rear Travel (in)
      5.9
    • Number Rear Shock Absorbers
      1
    • Front Suspension Brand Name
      WP APEX
    • Rear Suspension Brand Name
      WP APEX
  • WHEELS & TIRES
    add remove
    • Front Tire Width
      110
    • Front Wheel Diameter
      17
    • Rear Wheel Diameter
      17
    • Front Tire (Full Spec)
      Continental ContiRoad 110/70 ZR17
    • Rear Tire (Full Spec)
      Continental ContiRoad 150/60 ZR17
    • Rear Tire Width
      150
    • Front Tire Aspect Ratio
      70
    • Rear Tire Aspect Ratio
      60
  • BRAKES
    add remove
    • Front Brake Type
      Disc
    • Front Brake Diameter (in)
      12.6
    • Rear Brake Type
      Disc
    • Rear Brake Diameter (in)
      9.1
  • Color options
    add remove
    • Orange / Black
    • Orange / Blue
