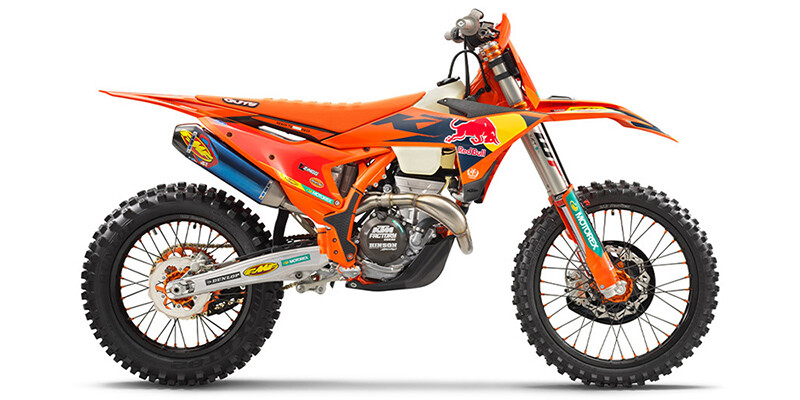

2025 350 XC-F Factory Edition

Request details Take a test ride

Description

Simply put - when it comes to dominating the fast-paced field of the GNCC, the 2025 KTM 350 XC-F FACTORY EDITION means business. Loaded with top-shelf KTM PowerParts, bold new additions, and years of hare-scrambling pedigree, the 2025 KTM 350 XC-F FACTORY EDITION is built to compete at the highest, most flat-out, level.

Model highlights:

Red Bull FMF KTM Factory Racing CTG
Orange glossy frame
Factory Racing frame protection set
Factory Racing seat
Factory Racing triple clamps
Factory Wheel Set
Dunlop AT82 tires front and rear
Factory-Start device
Factory skid plate
Factory Racing Front Brake Disc Cover
Semi-floating front brake disc
Solid rear brake disc
Orange Supersprox rear sprocket
Hinson outer clutch cover
FMF Factory 4.1 RCT Silencer
Connectivity unit GPS fender kit

Specifications

ENGINE

add remove
- Engine Type

  Single-Cylinder
- Engine Stroke

  4-Stroke
- Bore (in)

  3.46
- Stroke (in)

  2.26
- Displacement (cc)

  349.7
- Horsepower (bhp)

  58
- Compression Ratio

  14.6:1
TRANSMISSION

add remove
- Transmission

  Standard
- Transmission Type

  Manual
- Primary Drive (Rear Wheel)

  Chain
- Number Of Speeds

  6
- Final Drive Ratio

  3.57
- Overdrive

  Yes
- Gear Ratio (1)

  2.07
- Gear Ratio (2)

  1.56
- Gear Ratio (3)

  1.25
- Gear Ratio (4)

  1.05
- Gear Ratio (5)

  0.88
- Gear Ratio (6)

  0.77
- Transmission Brand

  Pankl
TECHNICAL SPECIFICATIONS

add remove
- Wheelbase (in)

  58.8
- Ground Clearance (in)

  13.5
- Ground Clearance (mm)

  343
- Dry Weight (lbs)

  231.3
- Fuel Capacity (gal)

  2.2
- Fuel Capacity (l)

  8.5
- Engine Displacement to Weight (cc)

  1.51
SUSPENSION

add remove
- Front Suspension Type

  Inverted Fork
- Front Suspension Size (in)

  1.9
- Front Travel (in)

  11.8
- Rear Suspension Type

  Twin Sided Swing Arm
- Rear Travel (in)

  11.8
- Number Rear Shock Absorbers

  1
- Front Suspension Brand Name

  WP XACT
- Rear Suspension Brand Name

  WP XACT
WHEELS & TIRES

add remove
- Front Wheel Width (in)

  1.6
- Rear Wheel Width (in)

  2.15
- Front Tire Width

  80
- Front Wheel Diameter

  21
- Rear Wheel Diameter

  18
- Front Tire (Full Spec)

  Dunlop® AT82 80/100 R21 51M
- Rear Tire (Full Spec)

  Dunlop® AT82 110/100 R18 64M
- Rear Tire Width

  110
- Front Tire Aspect Ratio

  100
- Rear Tire Aspect Ratio

  100
- Front Tire Speed Rating

  M
- Rear Tire Speed Rating

  M
BRAKES

add remove
- Front Brake Type

  Hydraulic Disc
- Front Brake Diameter (in)

  10.2
- Rear Brake Type

  Hydraulic Disc
- Rear Brake Diameter (in)

  8.7
Color options

add remove
- Orange / Red / Blue
