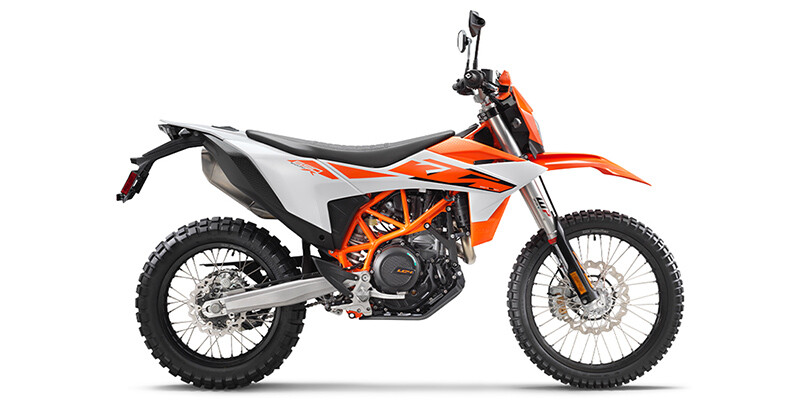

2026 690 Enduro R

2026 690 Enduro R

Description

Imagine this: Your KTM 690 ENDURO R grumbles with the rising revs as suburbia slowly disappears behind you. Upfront, a bright LED beam lights the way into the early morning mist as you hurtle toward the next dirt track. The next moment, you're blasting off into the wilderness, transitioning from asphalt to grit effortlessly, without breaking a sweat. That's the allure of the KTM 690 ENDURO R - versatility beyond boundaries.

Specifications

  • ENGINE
    add remove
    • Engine Type
      Single-Cylinder
    • Engine Stroke
      4-Stroke
    • Bore (in)
      4.13
    • Stroke (in)
      3.15
    • Displacement (cc)
      692.7
    • Compression Ratio
      12.6:1
    • Torque (Ft Lbs)
      53.8
    • Torque (Nm)
      73
  • TRANSMISSION
    add remove
    • Transmission
      Standard
    • Transmission Type
      Manual
    • Primary Drive (Rear Wheel)
      Chain
    • Number Of Speeds
      6
    • Overdrive
      Yes
  • TECHNICAL SPECIFICATIONS
    add remove
    • Wheelbase (in)
      59.3
    • Ground Clearance (in)
      10.4
    • Ground Clearance (mm)
      265
    • Dry Weight (lbs)
      335.1
    • Fuel Capacity (gal)
      3.5
    • Fuel Capacity (l)
      13.3
    • Engine Displacement to Weight (cc)
      2.07
    • Wet Weight (lbs)
      357.1
    • Wet Weight (kg)
      162
  • SUSPENSION
    add remove
    • Front Suspension Type
      Inverted Fork
    • Front Suspension Size (in)
      1.9
    • Front Travel (in)
      10.4
    • Rear Suspension Type
      Twin Sided Swing Arm
    • Rear Travel (in)
      9.8
    • Number Rear Shock Absorbers
      1
    • Front Suspension Brand Name
      WP XPLOR
    • Rear Suspension Brand Name
      WP XPLOR
  • WHEELS & TIRES
    add remove
    • Front Wheel Width (in)
      1.85
    • Rear Wheel Width (in)
      2.5
    • Front Wheel Diameter
      21
    • Rear Wheel Diameter
      18
    • Front Tire (Full Spec)
      Continental TKC 80 R21 Tires
    • Rear Tire (Full Spec)
      Continental TKC 80 R18 Tires
  • BRAKES
    add remove
    • Front Brake Type
      Disc
    • Front Brake Diameter (in)
      11.8
    • Rear Brake Type
      Disc
    • Rear Brake Diameter (in)
      9.5
  • Color options
    add remove
    • Orange / White
