Pre-owned 2024 Triumph Street Triple 765 R FOR SALE NEAR Woodstock, IL

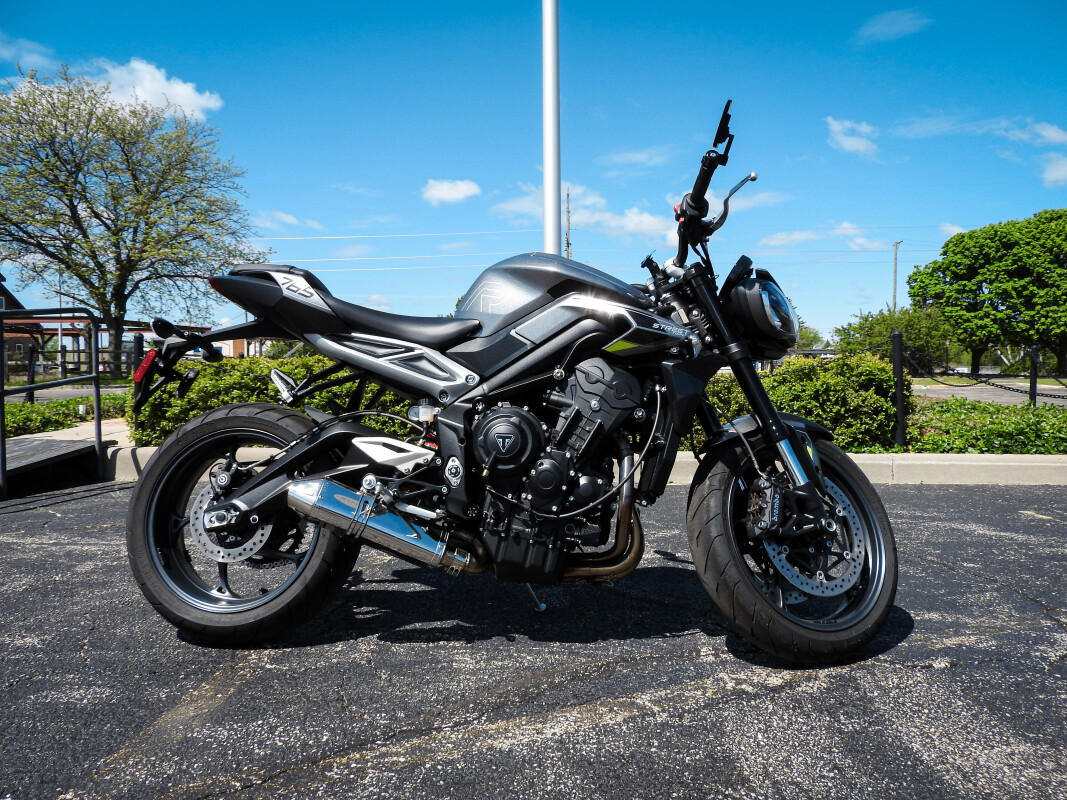

This Pre-owned Silver Ice 2024 Triumph Street Triple 765 R is for sale at Woodstock KTM Triumph located in Woodstock, IL. Contact Woodstock KTM Triumph of Woodstock, IL today to schedule a test-ride. If this isn't the exact Triumph you're looking for don't hesitate to go back and revise your search. We're sure to have the perfect new motorcycle for you on our showroom in Woodstock where we host one of the largest selections of new and used motorcycles. Visit Woodstock KTM Triumph of Woodstock, your IL Triumph dealership. IL’s premier new & used motorcycle dealer, we'll help you ride home on a new Triumph today!

Woodstock KTM Triumph

Easy Financing. Call Today!

Map Directions: 2235 S. Eastwood Dr.

Click To Call: 815-337-3511

Specifications

Engine & Transmission

add remove
- Engine Type:

  Liquid-cooled, 12 valve, DOHC, inline 3-cylinder
- Capacity:

  765 cc
- Bore:

  3.1 in
- Stroke:

  2.1 in
- Compression:

  13.25:1
- Max Power:

  88.3 kW / 11500 rpm
- Max Torque:

  59.0 ft-lb / 9500 rpm
- System:

  Multipoint sequential electronic fuel injection with electronic throttle control
- Exhaust:

  Stainless steel 3 into 1 header system with low single sided stainless steel silencer
- Final Drive:

  X-ring chain
- Clutch:

  Wet, multi-plate, slip
- Gearbox:

  6 speed
Chassis

add remove
- Frame:

  Aluminium beam twin spar frame with 2 piece high pressure die cast rear subframe
- Swingarm:

  Twin-sided, cast aluminium alloy
- Front Wheel:

  Cast aluminium alloy 5 spoke, 17 x 3.5 in
- Rear Wheel:

  Cast aluminium alloy 5 spoke, 17 x 5.5 in
- Front Tyre:

  120/70 ZR 17
- Rear Tyre:

  180/55 ZR 17
- Front Suspension:

  Showa 41 mm upside down Separate Function Forks - Big Piston (SFF-BP), adjustable compression and rebound damping, and preload adjustment. 115mm wheel travel
- Rear Suspension:

  Showa piggyback reservoir monoshock, adjustable compression, rebound and preload adjustment. 133.5mm wheel travel
- Front Brake:

  Twin 310 mm floating discs, Brembo M4.32 4-piston radial monobloc calipers, OC-ABS
- Rear Brake:

  Single 220 mm disc, Brembo single piston caliper, OC-ABS
Dimensions & Weights

add remove
- Width Handlebars:

  31.2 in
- Height Without Mirror:

  41.2 in
- Seat Height:

  32.5 in
- Wheelbase:

  55.2 in
- Rake:

  23.7 º
- Trail:

  3.9 in
- Tank Capacity:

  4.0 gal
- Wet Weight:

  189 kg
Fuel Consumption

add remove
- Fuel Consumption:

  52.8 mpg (5.4 litres / 100 km)
- CO₂ Figures:

  120g/km EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving result
