‹ Home › Inventory › STREET TRIPLE RS 2026 Street Triple 765 RS

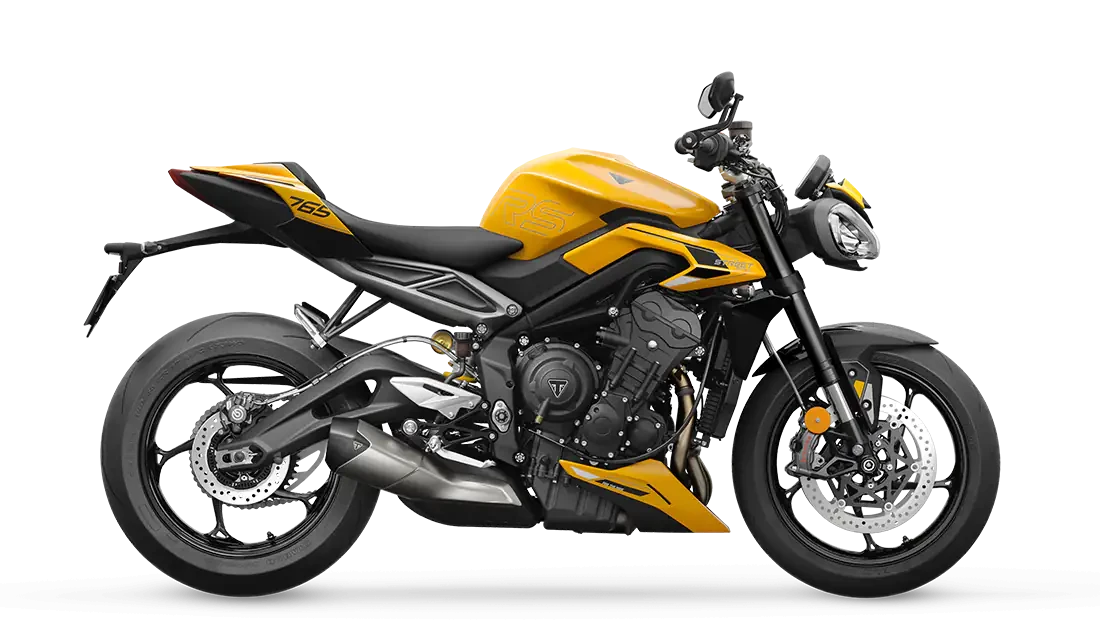

New 2026 Triumph Street Triple 765 RS FOR SALE NEAR Woodstock, IL

This New Cosmic Yellow 2026 Triumph Street Triple 765 RS is for sale at Woodstock KTM Triumph located in Woodstock, IL. Contact Woodstock KTM Triumph of Woodstock, IL today to schedule a test-ride. If this isn't the exact Triumph you're looking for don't hesitate to go back and revise your search. We're sure to have the perfect new motorcycle for you on our showroom in Woodstock where we host one of the largest selections of new and used motorcycles. Visit Woodstock KTM Triumph of Woodstock, your IL Triumph dealership. IL’s premier new & used motorcycle dealer, we'll help you ride home on a new Triumph today!

Woodstock KTM Triumph

Easy Financing. Call Today!

Map Directions: 2235 S. Eastwood Dr.

Click To Call: 815-337-3511

With the new generation’s major step up in technology and stunning looks, the RS adds the highest specification brakes, the most advanced handling setup and sets a new benchmark as THE most powerful Street Triple ever.

Specifications

Engine & Transmission

add remove
- Engine Type:

  Liquid-cooled, 12 valve, DOHC, inline 3-cylinder
- Capacity:

  765 cc
- Bore:

  3.1 in
- Stroke:

  2.1 in
- Compression:

  13.25:1
- Max Power:

  95.6 kW / 12000 rpm
- Max Torque:

  59.0 ft-lb / 9500 rpm
- System:

  Multipoint sequential electronic fuel injection with electronic throttle control
- Exhaust:

  Stainless steel 3 into 1 header system with low single sided stainless steel silencer
- Final Drive:

  X-ring chain
- Clutch:

  Wet, multi-plate, slip
- Gearbox:

  6 speed
Chassis

add remove
- Frame:

  Aluminium beam twin spar frame with 2 piece high pressure die cast rear subframe
- Swingarm:

  Twin-sided, cast aluminium alloy
- Front Wheel:

  Cast aluminium alloy 5 spoke, 17 x 3.5 in
- Rear Wheel:

  Cast aluminium alloy 5 spoke, 17 x 5.5 in
- Front Tyre:

  120/70 ZR 17
- Rear Tyre:

  180/55 ZR 17
- Front Suspension:

  Showa 41 mm upside down Big Piston Forks (BPF), adjustable compression and rebound damping, and preload adjustment. 115mm wheel travel
- Rear Suspension:

  Öhlins STX40 piggyback reservoir monoshock, adjustable compression and rebound damping, and preload adjustment. 131.2mm wheel travel
- Front Brake:

  Twin 310 mm floating discs, Brembo Stylema 4-piston radial monobloc calipers, OC-ABS, Brembo MCS radial master cylinder
- Rear Brake:

  Single 220 mm disc, Brembo single piston caliper, OC-ABS
- Instrument Display and Functions:

  Full colour 5" TFT instruments
Dimensions & Weights

add remove
- Width Handlebars:

  31.2 in
- Height Without Mirror:

  41.9 in
- Seat Height:

  32.9 in
- Wheelbase:

  55.1 in
- Rake:

  23.2 º
- Trail:

  3.8 in
- Tank Capacity:

  4.0 gal
- Wet Weight:

  188 kg
Fuel Consumption

add remove
- CO₂ Figures:

  120g/km EURO 5 CO₂ emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real dri
Features

add remove
- Wheels and Tires:

  Pirelli Diablo Supercorsa V3 tires
- Clutch:

  Slip & assist clutch
Technology

add remove
- Riding modes:

  5 riding modes (Rain, Road, Sport, Track and Rider)
- Instruments:

  5” TFT instruments
- ABS:

  Optimized Cornering ABS
